VIRAT-6

Non-insulated Terminal Crimping Tool

Capacity: 0.5mm² to 6mm²

Weight: 400gm

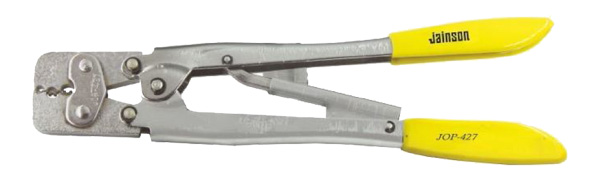

JOP-427

Non-insulated Terminal Crimping Tool

Capacity: 1.5mm² to 10mm²

Weight: 525gm

SAMRAT-16

Non-insulated Terminal Crimping Tool

Capacity: 0.5mm² to 16mm²

Weight: 700gm

VIKRANT-50

Non-insulated Terminal Crimping Tool (Dieless)

Capacity: 6mm² to 50mm²

Weight: 1.6 Kg

TRISHUL (3 in 1)

Insulated Terminal Crimping Tool

Capacity: 1.5,2.5, 4-6mm²

Weight: 550gm

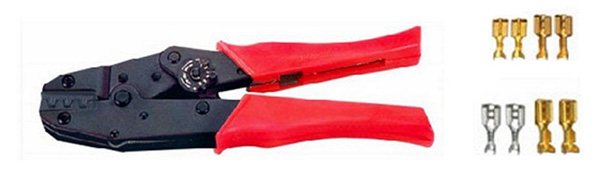

LUV-KUSH-6

Open Barrel Tab Terminal Crimping Tool

Capacity: 0.5-1.0,1.1-2.5,4-6mm²

Weight: 550gm

CHETAK-6

End Sealing Ferrules Crimping Tool

Capacity: 0.5mm² to 6mm²

Weight: 550gm

CHETAK-16

End Sealing Ferrules Crimping Tool

Capacity: 10mm² to 16mm²

Weight: 550gm

CHAKRA-6

End Sealing Ferrules Crimping Tool 4 Spots Crimping (Dieless)

Capacity: 0.5mm² to 6mm²

Weight: 400gm

CHAKRA-16

End Sealing Ferrules Crimping Tool 4 Spots Crimping (Dieless)

Capacity: 4mm² to 16mm²

Weight: 520gm

SPIDER-6

End Sealing Ferrules Crimping Tool 6 Spots Crimping (Dieless)

Capacity: 0.5mm² to 6mm²

Weight: 400gm

ARJUN-50

Heavy Duty Compression Tool (Dieless)

Capacity: 16, 25, 35, 50mm²

Weight: 2.6 Kg

AGNEE-95

(Dieless)

Capacity: 10mm² to 95mm²

Weight: 3.6 Kg

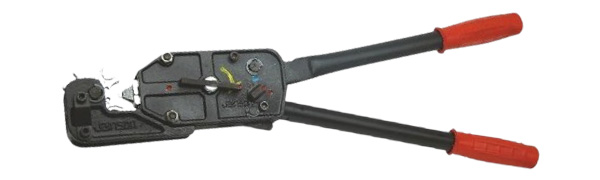

EKLOVYA-120

(Gear Powered-Dieless)

Capacity: 10mm² to 120mm²

Weight: 2.4 Kg

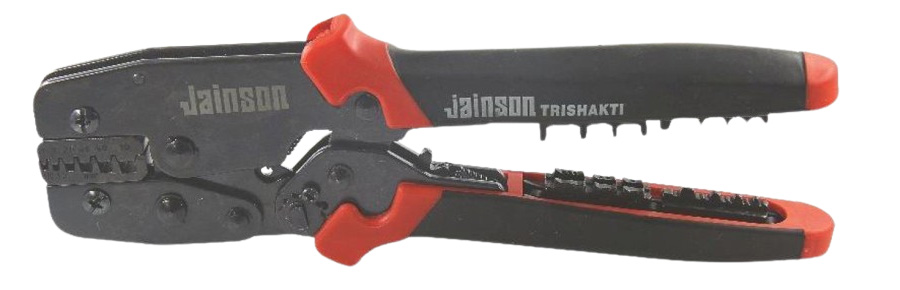

TRISHAKTI

Insulated/Non-insulated & End Sealing Ferrules Crimping Tool

Weight: 650gm

Capacity: 1.5mm² to 10mm²

(NON INSULATED TERMINALS)

Capacity: 1.5, 2.5, 4-6mm²

(PRE INSULATED TERMINALS)

Capacity: 1.5mm² to 10mm²

(END SEALING FERRULES)

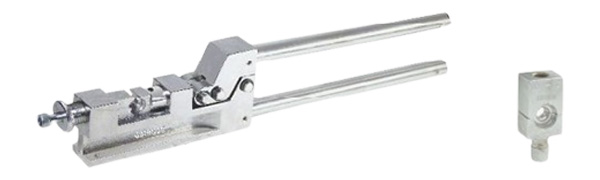

GRD-95 (Ring)

Capacity: 10mm² to 95mm²

Dies: R-1 to R-10 (9 Sets)

Weight: 5.4 Kg

GRD-95 (Hexagonal)

Capacity: 10mm² to 95mm²

Dies: H-10 to H-95 (7 Sets)

Weight: 5.4 Kg

GRD-185 (Ring)

Capacity: 10mm² to 185mm²

Dies: R-1 to R-13 (12 Sets)

Weight: 7.3 Kg

GRD-185 (Hexagonal)

Capacity: 10mm² to 185mm²

Dies: H-10 to H-185 (10 Sets)

Weight: 7.3 Kg

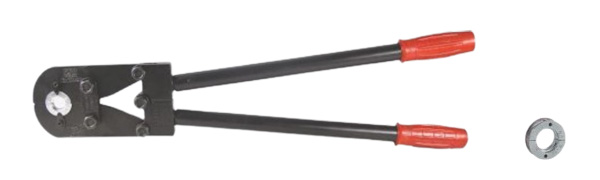

VISHAL-185 (Ring)

Provided dual gripper system in jaws & dies for perfect crimping

Capacity: 10mm² to 185mm²

Dies: R-1 to R-13 (12 Sets)

Weight: 7.1 Kg

VISHAL-185 (Hexagonal)

Provided dual gripper system in jaws & dies for perfect crimping

Capacity: 10mm² to 185mm²

Dies: H-10 to H-185 (10 Sets)

Weight: 7.1 Kg

SURYA-400 (Hexagonal)

Capacity: 25mm² to 400mm²

Dies: H-25 to H-400 (11 Sets)

Weight: 7.3 Kg

Packing: Steel Case

SANGRAM-400 (Hexagonal)

GEAR POWERED

Capacity: 25mm² to 400mm²

Dies: H-25 to H-400 (11 Sets)

Weight: 5.8 Kg

AAKASH-400 & AAKASH-500

Dieless

Capacity: Up to 400mm² for AAKASH-400 & Up to 500mm² for AAKASH-500

Weight: 5.8 Kg for Both

SAGAR-400

Foot Operated Hydraulic Tool

Capacity: 25mm² to 400mm²

Dies: H-25 to H-400 (11 Sets)

Weight: 17.5 Kg

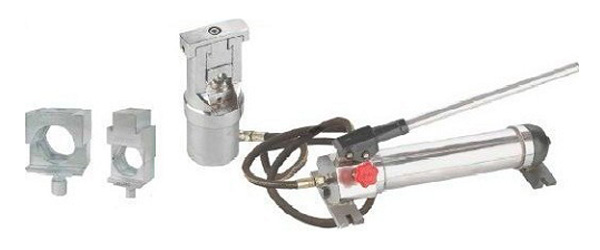

HPCT-20A / HPCT-20B (Ring)

Capacity: Up to 300mm² for HPCT-20A & Up to 400mm² for HPCT-20B

Dies: R-11 to R16 (6 Sets) for HPCT-20A & R-11 to R18 (8 Sets) for HPCT-20B

Weight: 15.1 Kg for Both

HPCT-20 (Hexagonal)

Capacity: 50mm² to 400mm²

Dies: H-50 to H-400 (9 Sets)

Weight: 15.1 Kg

HPCT-150A (Ring)

Capacity: Up to 400mm²

Dies: R-11 to R-18 (8 Sets)

Weight: 26.5 Kg

HPCT-150B (Ring)

Capacity: Up to 1000mm²

Dies: R-11 to R-23, R-27, R-29 (15 Sets)

Weight: 26.5 Kg

HPCT-150A (Hexagonal)

Capacity: 50mm² to 400mm²

Dies: H-50 to H-400 (9 Sets)

Weight: 26.5 Kg

HPCT-150B (Hexagonal)

Capacity: 50mm² to 1000mm²

Dies:H-50 to H-1000 (13 Sets)

Weight: 26.5 Kg

ASHOKA-400

Capacity: 25mm² to 400mm²

Dies: H-25 to H-400 (11 Sets)

Weight: 8.5 Kg

SHAKTI-400

Capacity: 25mm² to 400mm²

Dies: H-25 to H-400 (11 Sets)

Weight: 8.5 Kg

VARUN-400

Available with Hand and Foot pump

Capacity: 25mm² to 400mm²

Dies: H-25 to H-400 (11 Sets)

Weight: 13.9 Kg

BHOOMI-400

Available with Hand and Foot pump

Capacity: 25mm² to 400mm²

Dies: H-25 to H-400 (11 Sets)

Weight: 12.5 Kg

TEJAS-630

Available with Hand and Foot pump

Capacity: 50mm² to 630mm²

Dies: H-25 to H-630 (11 Sets)

Weight: 17.9 Kg

PRITHVI-1000

Available with Hand and Foot pump

Capacity: 50mm² to 1000mm²

Dies: H-50 to H-1000 (13 Sets)

Weight: 23.5 Kg

TIGER-125

Length: 300mm

Weight: 700 gm

TIGER-250

Length: 600mm

Weight: 1.2 Kg

TIGER-500

Length: 800mm

Weight: 2.8 Kg

JAGUAR-30 J

For cutting off steel wire ropes which is smaller than 100mm². For cutting off ACSR (Aluminium conductors cable Steel-Reinforced) which is smaller than 620mm².

Size: 405 x 160 x 64mm

Weight: 3.6 Kg

JAGUAR-52 J

For cutting off copper & Aluminium in cable with diameter smaller than 500mm².

Size: 397 x 165 x 54mm

Weight: 3.1 Kg

JAGUAR-75 J

For cutting off copper & aluminium in armoured cable with is smaller than 3 x 120 mm² or 75mm ∅. Also it is cutting off 3600 pairs of communication cables.

Size: 416 x 205 x 55mm

Weight: 3.6 Kg

JAGUAR-95 J

For cutting off copper & aluminium in armoured cable with is smaller than 3 x 185mm² or 95 mm ∅.

Size: 397 x 165 x 54mm

Weight: 3.1 Kg

JAGUAR-100 J

For cutting off copper & aluminium in armoured cable with is smaller than 3 x 300mm² or 100 mm ∅.

Size: 482 x 270 x 59mm

Weight: 6.6 Kg

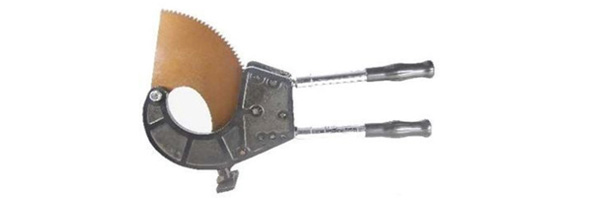

JAGUAR-130 J

For cutting off copper & aluminium in armoured cable with a diameter smaller 130 mm ∅.

Size: 524 x 328 x 59mm

Weight: 8.3 Kg

1/4" B.S.P

For HPCT-20, HPCT-150, SAGAR-400

Length: 2mtrs

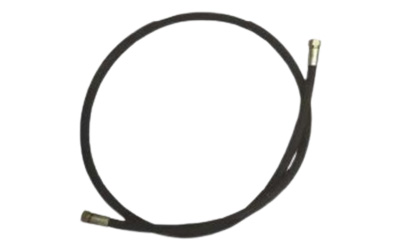

3/8" B.S.P

For VARUN-400, BHOOMI-400, TEJAS-630, PRITHVI-1000

Length: 2mtrs

JUPITER-400 (POWER TOOLS)

Accessories:

Crimping Hex dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400

Battery: 2 pcs

Charger: 1 pc

Sealing ring of cylinder: 1 set

Sealing ring of safety valve: 1 set
