Hydraulic / Hand Crimping Tools
A hydraulic crimping tool, also known as a hydraulic cable crimper, is a specialized tool designed for crimping and terminating cable lugs, connectors, and splices onto electrical cables. These tools use hydraulic pressure to compress the metal crimp onto the cable, creating a secure and reliable electrical connection.
Here are some key features and uses of hydraulic crimping tools:
-
Hand crimping tools, also known as manual crimping tools or hand crimpers, are versatile tools used for crimping or compressing connectors onto the ends of electrical wires or cables. These tools are typically handheld and operated manually.
-
Hydraulic Operation: These tools use hydraulic fluid to generate force. The hydraulic mechanism allows for greater force with less manual effort, making it easier to crimp larger cables or multiple crimps.
-
Crimping Dies: Hydraulic crimping tools come with interchangeable crimping dies that match the size and type of the cable lug or connector being used. The dies are specific to different wire gauges and connector types.
-
Versatility: Hydraulic crimpers are versatile and can be used with a variety of cable types, including copper and aluminum cables. They are commonly used in applications involving power distribution, telecommunications, and industrial electrical work.
-
Precision and Consistency: The hydraulic mechanism provides precise and consistent crimps, ensuring a reliable and uniform connection. This is important for maintaining the integrity of electrical systems.
-
Safety: Hydraulic crimping tools often come with safety features such as ergonomic handles, a two-stage pumping mechanism, and pressure release valves. These features enhance operator safety and prevent over-crimping.
-
Portable and Handheld: While hydraulic crimpers can vary in size and weight, many models are designed to be portable and handheld. This makes them suitable for fieldwork and applications where mobility is essential.
-
Crimp Force Monitoring: Some advanced hydraulic crimping tools come with features like crimp force monitoring, which ensures that the proper amount of force is applied during the crimping process, preventing under or over-crimping.
-
Battery-Powered Options: In addition to manual hydraulic crimpers, there are battery-powered hydraulic crimping tools available. These cordless tools provide increased mobility and are especially useful in situations where access to power sources is limited.
XTRA - 400HD
6 Stroke Crimping. 360° Rotating head for any angle crimping.
Capacity upto 400mm2 (CU and AL)
Particulars: Hand operated tool, with hexagonal dies, light weight
Enquire Now
XTRA - 300HD
5 Stroke Crimping. 360° Rotating head for any angle crimping.
Capacity 10mm2 - 300mm2
Particulars: Hand operated tool, with hexagonal dies, light weight
Enquire Now
XTRA - 120HD
5 Stroke Crimping. 360° Rotating head for any angle crimping.
Capacity 10mm2 - 120mm2
Particulars: Hand operated tool, with hexagonal dies, light weight
Enquire Now
XTRA - 1546M
Capacity 1.5mm2 - 6mm2
Particulars: Hand crimping tool for insulated lug terminals
Enquire Now
XTRA - 5246
Capacity EHI 0.25mm2 - 4mm2
Insulated 0.5mm2 - 2.5mm2
Particulars: Hand crimping tool for EHI lugs
Enquire Now
XTRA-6-4
Capacity 0.25mm2 - 6mm2
Particulars: Self adjusting crimping tool for end sealing ferrules / EHI lugs
Enquire Now
XTRA-6-6
Capacity 0.25mm2 - 6mm2
Particulars: Self adjusting crimping tool for end sealing ferrules / EHI lugs
Enquire Now
XTRA-16-4
Capacity 0.25mm2 - 4mm2
Particulars: Self adjusting crimping tool for EHI lugs
Enquire Now
XTRA- 150B
Capacity 25mm2 - 150mm2
Particulars: Dieless hand crimping tool for non-insulated lug
Enquire Now

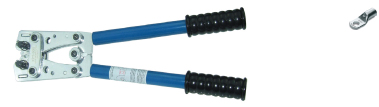

XTRA- 50B
Capacity 6mm2 - 50mm2
Particulars: Dieless hand crimping tool for non-insulated lug
Enquire Now
XTRA- 700B
Capacity 0.5mm2 - 6mm2
Particulars: Wire stripper with adjustable length positioner
Enquire Now
